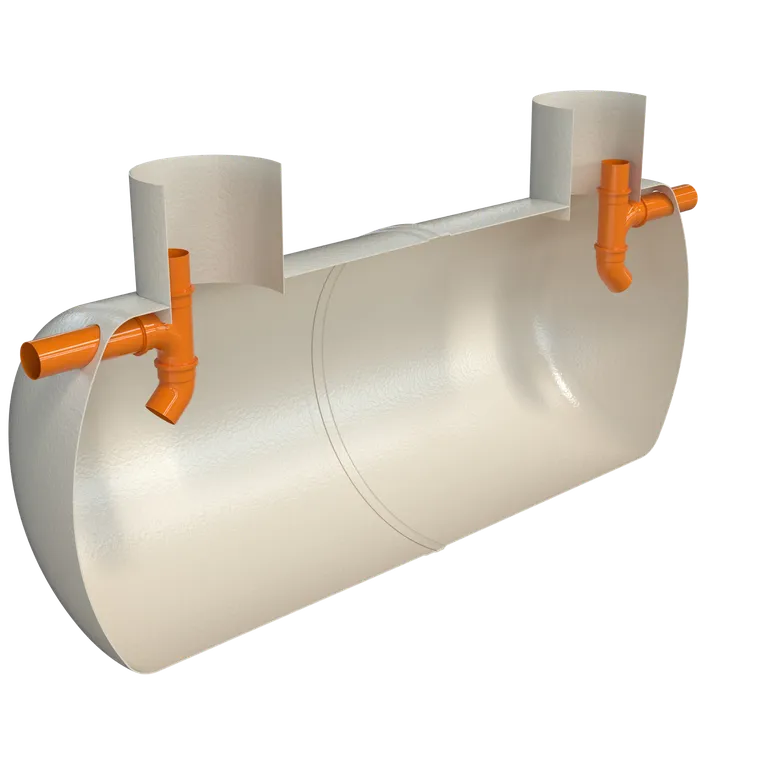

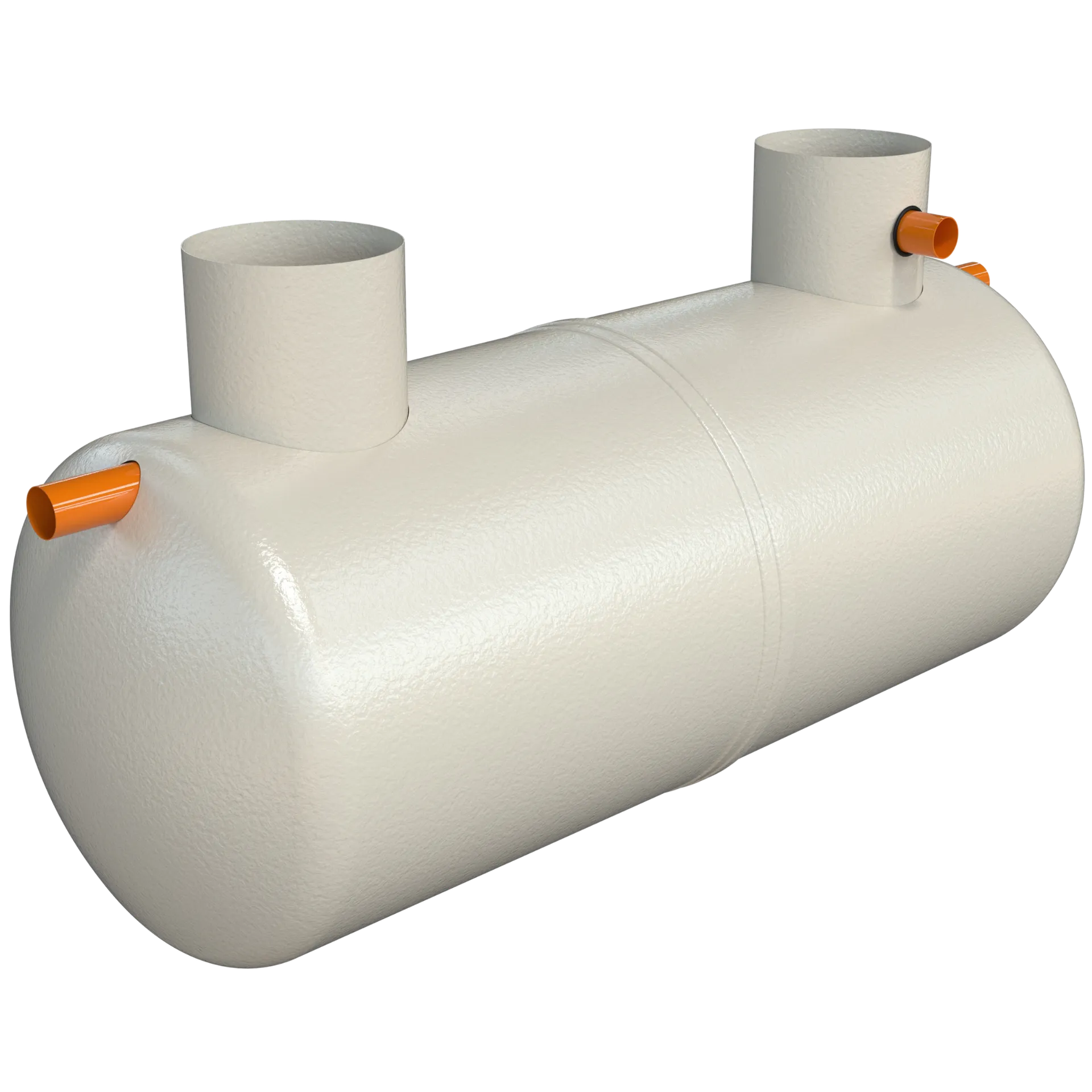

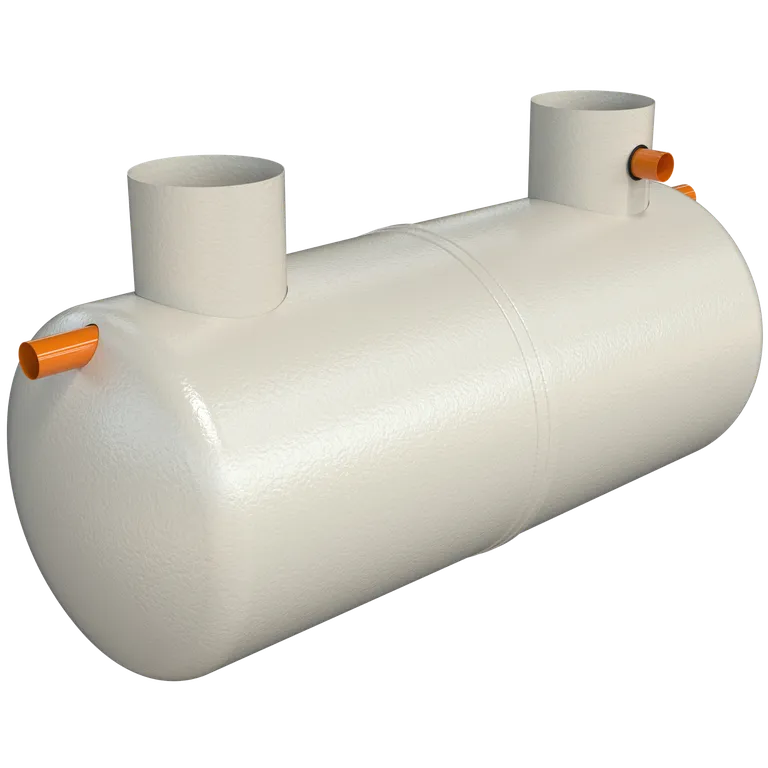

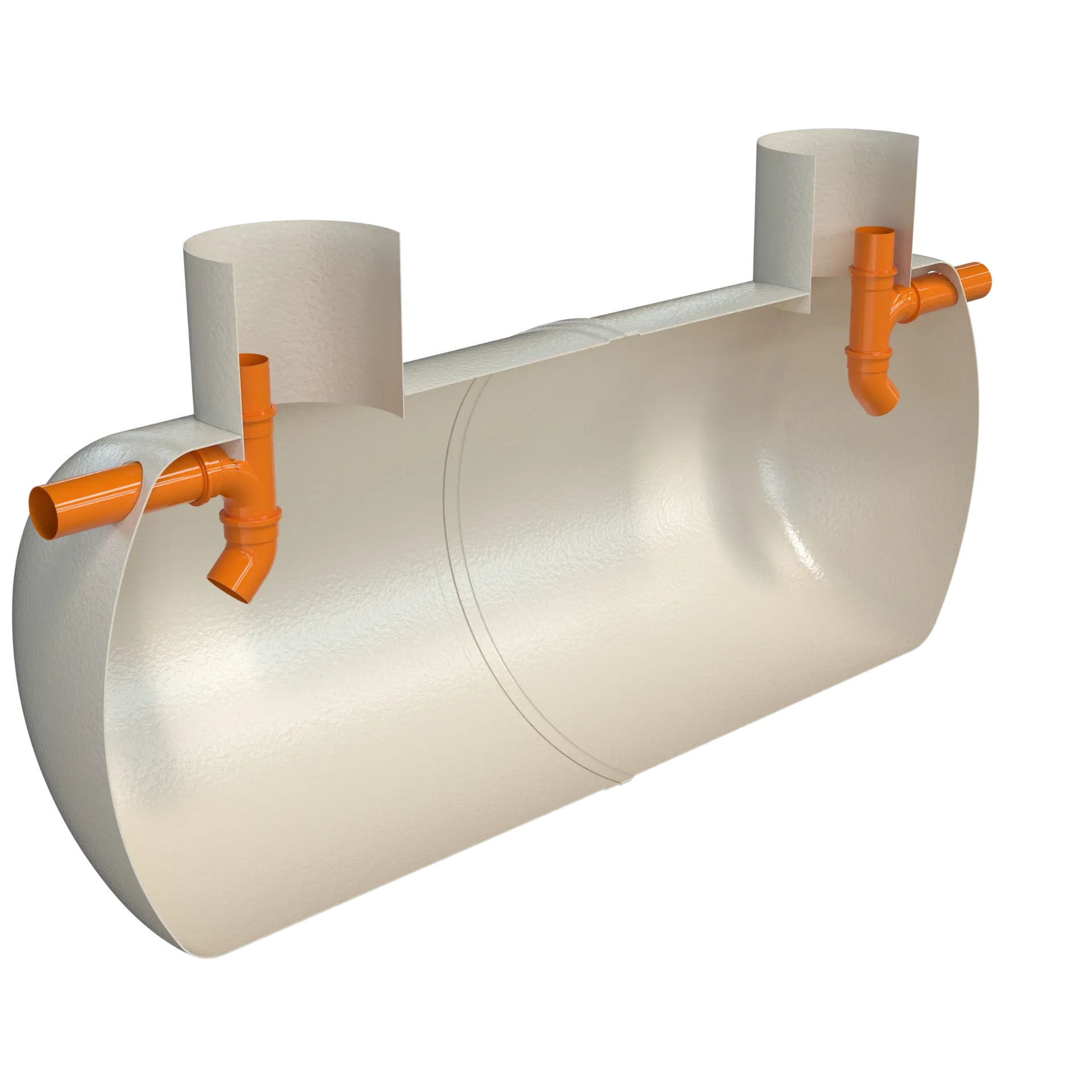

Clearwater SepticTank Range
)
)
Product Information
The Clearwater Septic Tank Range is a cost effective septic tank solution. The design delivers a robust and impact-resistant tank which is ideal for solving your sewage needs. Available in six sizes to service capacity requirements of up to 9,150 litres, our Clearwater Septic Tank Range is suitable for sites such as single and multiple homes, churches, golf courses, farms and mobile homes.
Product Highlights
- MDPE & GRP tanks - strong and durable
- Designed to meet the relevant standards for GB, NI and ROI: EN 12566-1 (GB/NI) and SR66:2015 (ROI). See technical information for details of which models are suitable for each standard.
- CE marked
- Robust and simple to install for reduced on-site installation time
- Available in six sizes to serve capacity requirements of up to 9,150 litres
- Light and watertight septic tank
- We recommend installing a Klargester BioDisc where possible as they actively treat the sewage
- Free site visit to help select the model to meet your needs - email klargesterinfo-web@kingspan.com
Technical Information
Specification
| Model Reference | Capacity (L) | No. of People | Width/Diameter (mm) | Length (mm) | Standard Inlet Invert (mm) | Standard Outlet Invert (mm) | Overall Height (mm) | Pipe Size |
|---|---|---|---|---|---|---|---|---|
| AST029** | 2900 | 6 | 1220 | 2240 | 600-1050* | 650-1100* | 1960-2410* | Ø110mm |
| AST038** | 3800 | 12 | 1220 | 2690 | 600-1050* | 650-1100* | 2100-2550* | Ø110mm |
| STH048 | 4800 | 18 | Ø1425 | 3775 | 500 | 530 | 1750 | Ø110mm |
| STH057 | 5700 | 24 | Ø1425 | 4275 | 500 | 530 | 1750 | Ø110mm |
| STH071 | 7150 | 34 | Ø1920 | 3230 | 500 | 530 | 2190 | Ø160mm |
| STH091 | 9150 | 47 | Ø1920 | 3965 | 500 | 530 | 2190 | Ø160mm |
*Trimmable Inlet Invert
**All tanks are certified to EN 12566-1 for use in GB and NI. The AST029 and AST038 models are also approved to SR66:2015 for use in the Republic of Ireland (ROI).
Applications
- Single/Multiple Homes
- Holiday and Residential Caravan sites
- Golf Course toilets
- Churches
- Mobile homes
- Farms
- Temporary work offices e.g. portable cabins
- Offices/Light Industrial Units
- Temporary Dwellings & Welfare Facilities
Legislation
- All tanks are certified to EN 12566-1 for use in GB and NI. The AST029 and AST038 models are also approved to SR66:2015 for use in the Republic of Ireland (ROI).
- CE marked
Contact the Kingspan Klargester Team
Whether you're planning a new project, looking for product guidance or need support with an existing system, our team is here to help.
)

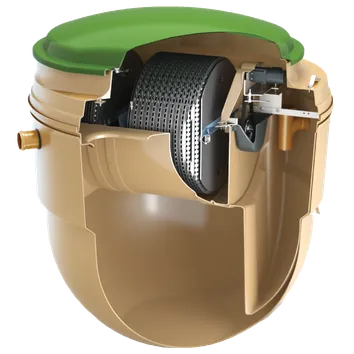

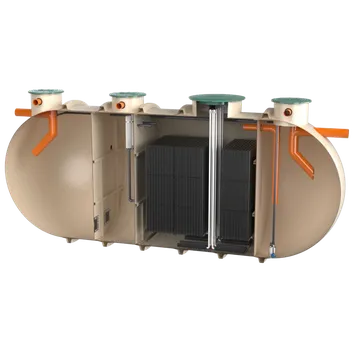

BioDisc Domestic Sewage Treatment Plant
The Klargester BioDisc domestic treatment plant offers peace of mind with the efficient removal of pollutants, a 7-year warranty (terms apply), affordable running costs, no smell & silent operation.
)

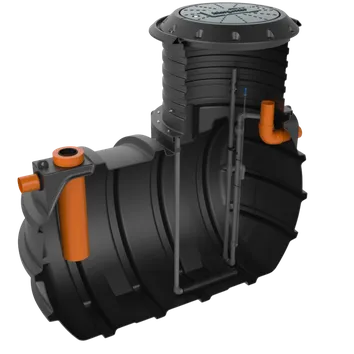

BioTec+ Domestic Sewage Treatment Plant
An economically priced plant, the Klargester BioTec+ offers flexible installation options to suit a variety of domestic sites, has a low visual footprint and is suitable for shallow dig applications.
)

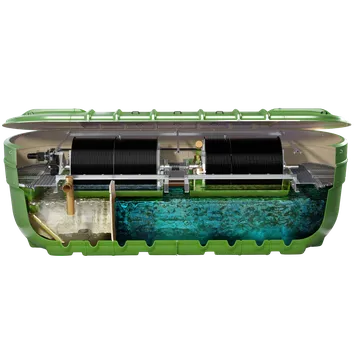

BioDisc® Large Sewage Treatment Plant
Delivered as a single packaged system, the BioDisc® Large Sewage Treatment Plant is a cost-effective sewage treatment plant for a range of commercial applications.
)
Clearwater Large Sewage Treatment Plant
The Clearwater Large Sewage Treatment Plant is designed with efficiency in mind. It offers reliable performance using tried and tested technology to ensure consistently high effluent quality.
Resources
Explore our Related Articles
From real-world projects to useful industry knowledge, explore our latest case studies and articles. Gain insight into different applications and keep up to date with the latest developments, ideas and information from across the industry.
)
Sarah Beeny's New Life in the Country
The importance of correctly managing wastewater in an off-grid development
)
Managing Floodwater With Sustainable Drainage Systems
Flooding is not a new phenomenon. But increased rainfall and rising sea levels are just some the effects caused by global warming.
)
Thorney Lakeside Luxury Lodges
Following the expansion of new lodges, Thorney Lakeside Luxury Lodges installed a Klargester BioDisc to comply with local regulations
)

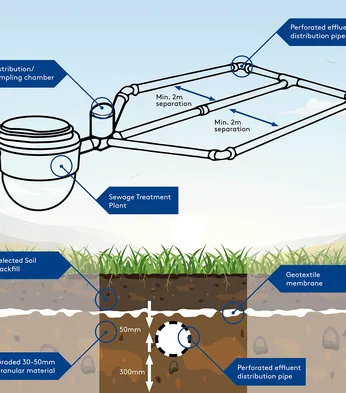

Installing & Maintaining your Off-Mains Drainage Field
