Klargester AlphaSeptic Tank
Product Information

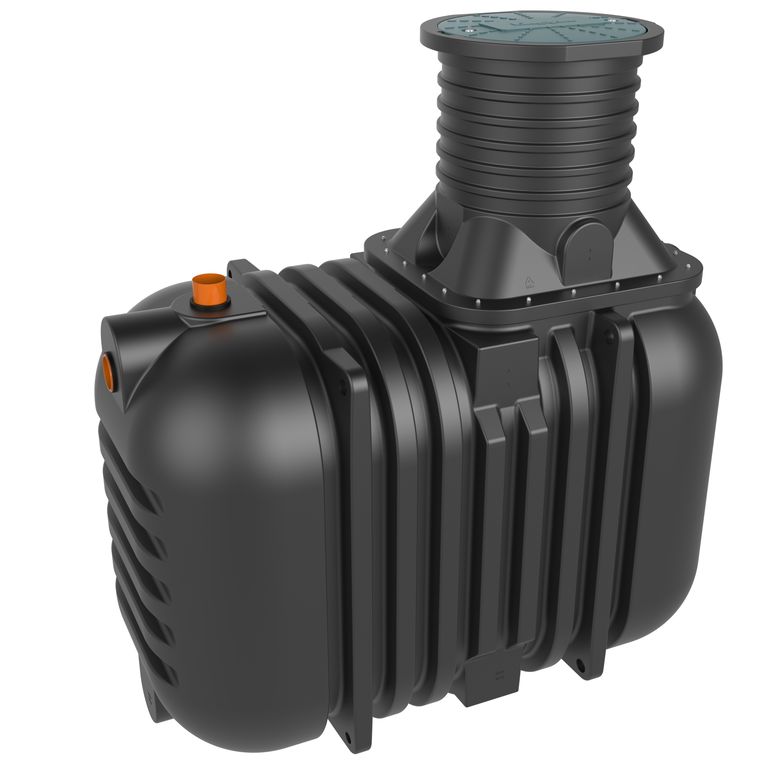

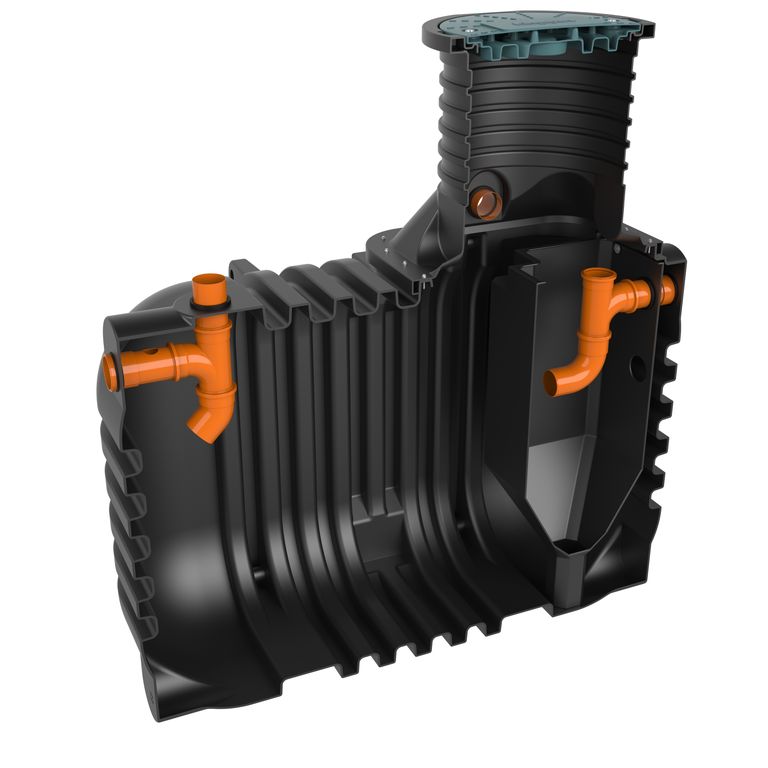

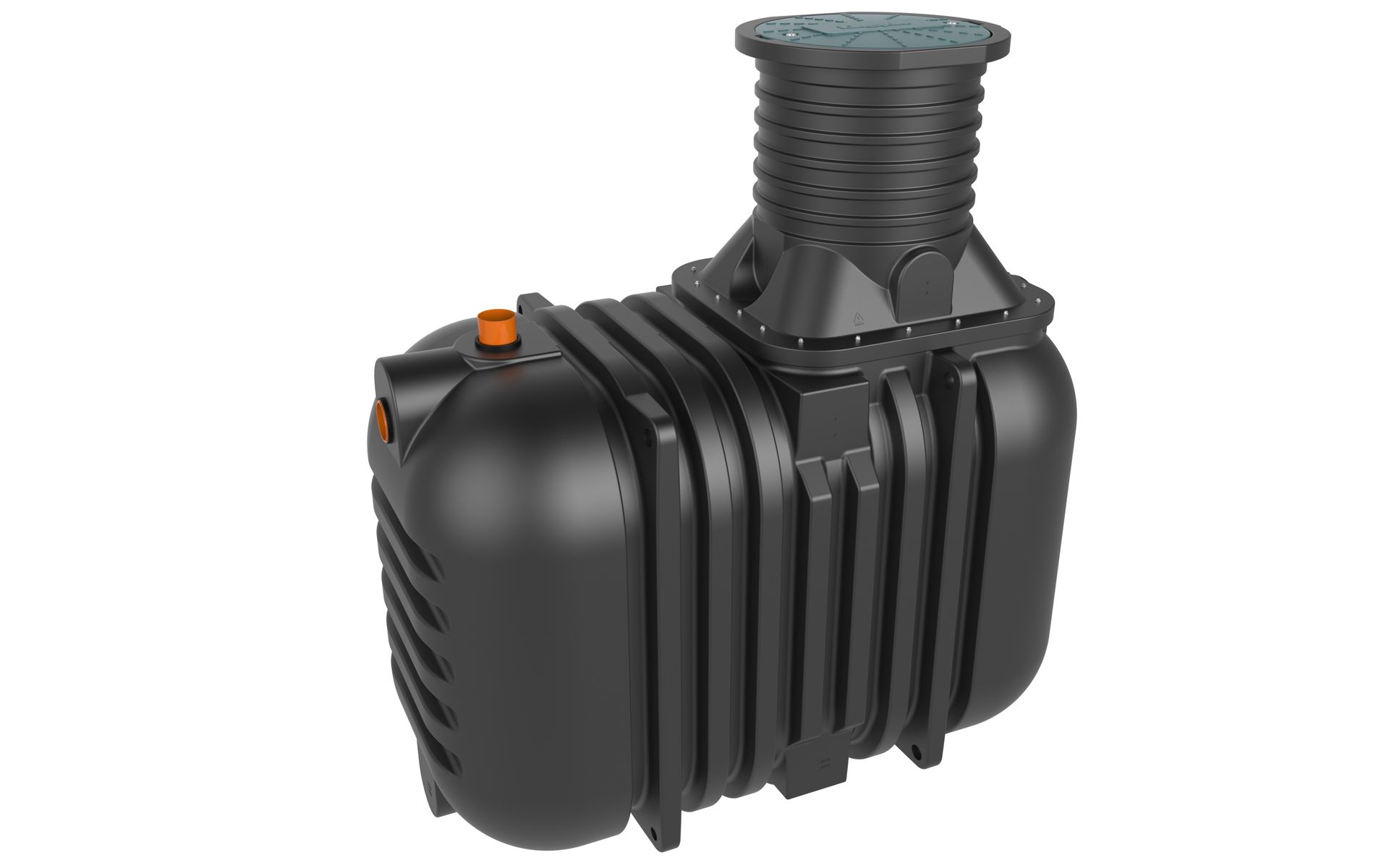

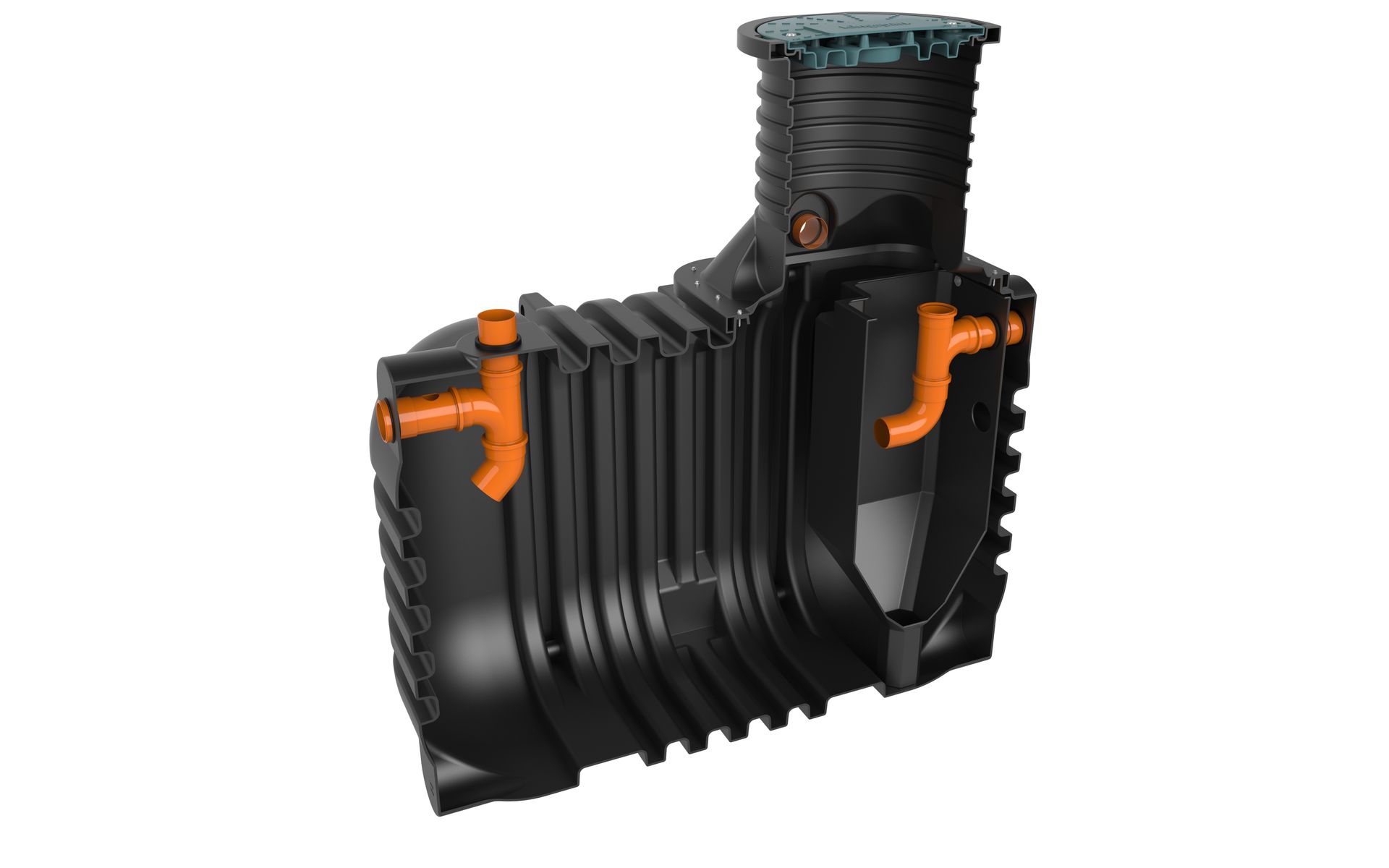

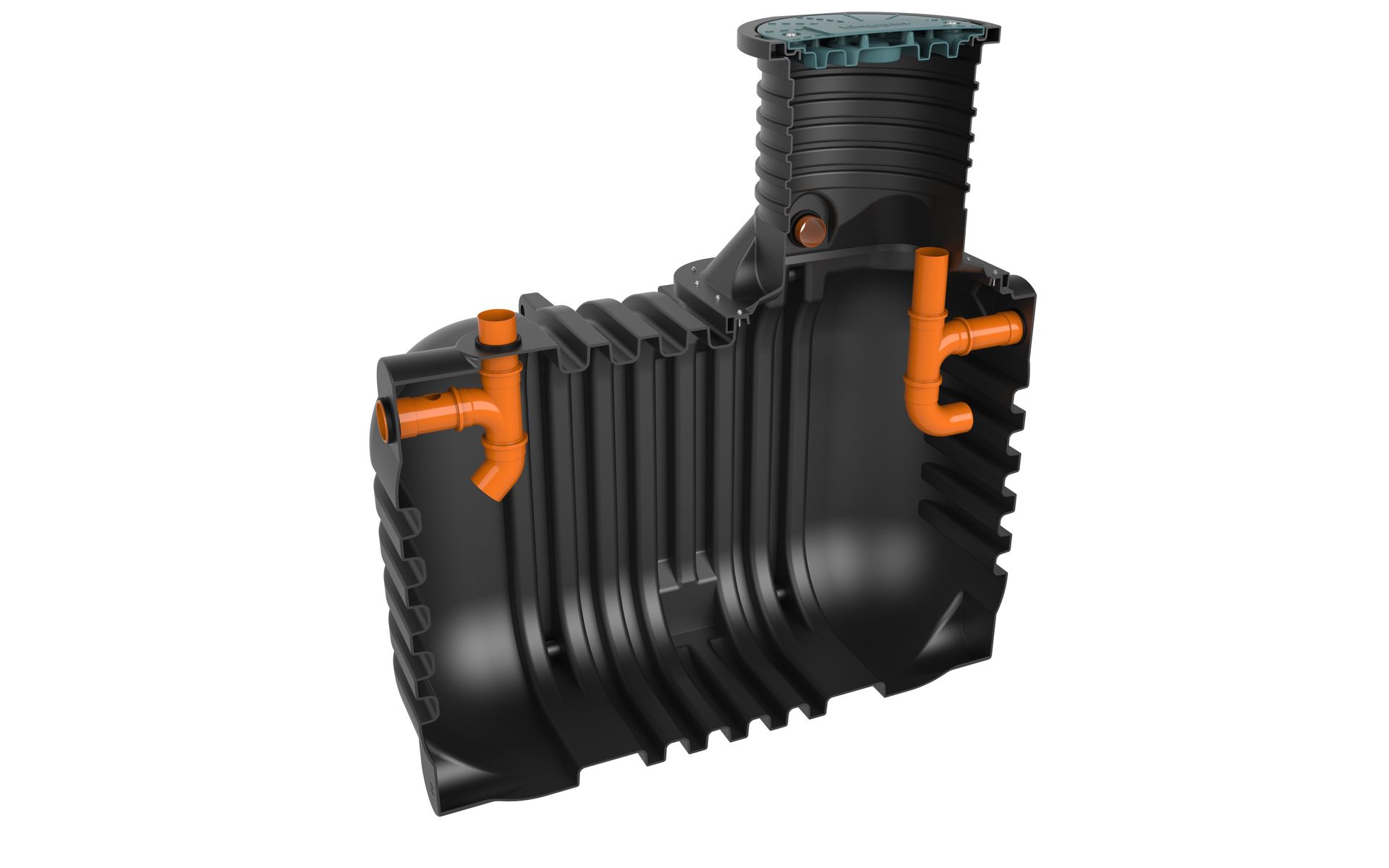

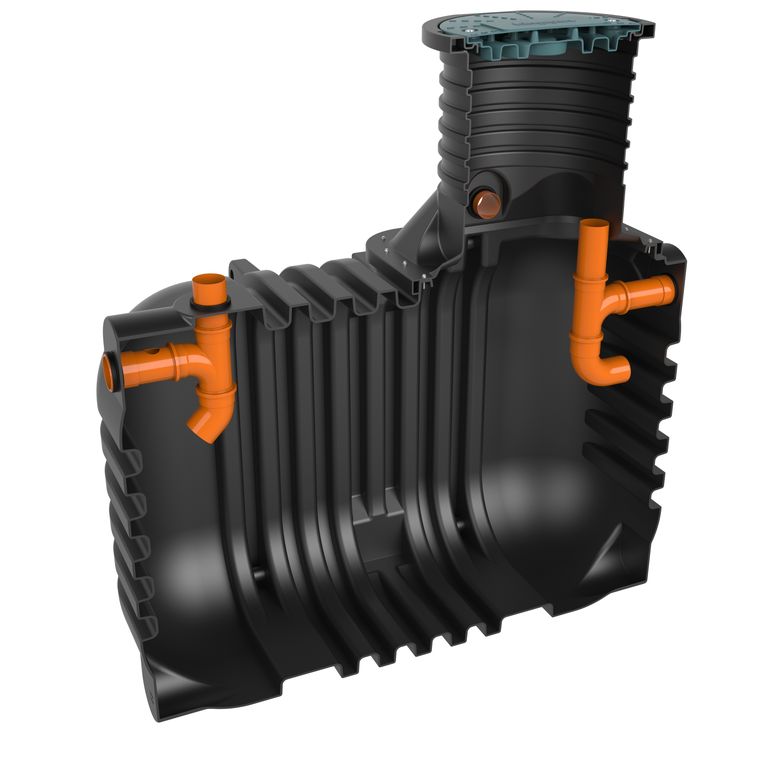

The new and improved Kingspan Klargester Alpha Septic Tank range delivers enhanced performance compared with the original Alpha tank, alongside an improved design to make handling and installation easier. Manufactured from tough polyethylene, the septic tank incorporates practical installation benefits including a trimmable neck, optional retaining bars and four integrated lifting points for stable lifting. Suitable for shallow dig applications, the range is available in two sizes to suit a variety of domestic wastewater requirements.
Product Highlights
- Made from MDPE - strong and durable
- Light and watertight
- Four lifting points for stable lifting
- Trimmable neck with a 600 - 1,050mm inlet invert
- Retaining bars to help reduce overall installation costs (optional extra)
- Improved shape for installation
- Large access opening DN600
- Improved hydraulic efficiency
- Available in two different sizes, ranging from 2,900 - 3,800 litres
- Suitable for homes with between 6-12 occupants
Free site visit to help select the model to meet your needs email klargesterinfo-web@kingspan.com
Technical Information
Specification
| Model Reference | Capacity (L) | Number of Chambers | Number of People | Width (mm) | Length (mm) | Overall Height (mm) | Standard Inlet Invert (mm) | Standard Outlet Invert (mm) |
|---|---|---|---|---|---|---|---|---|
| AST029SUGK | 2,900 | 1 | 6 | 1220 | 2240 | 1960 - 2410 | 600 - 1050 | 650 - 1100 |
| AST029TUGK | 2,900 | 2 | 6 | 1220 | 2240 | 1960 - 2410 | 600 - 1050 | 650 - 1100 |
| AST038SUGK | 3,800 | 1 | 12 | 1220 | 2690 | 2100 - 2550 | 600 - 1050 | 650 - 1100 |
| AST038TUGK | 3,800 | 2 | 12 | 1220 | 2690 | 2100 - 2550 | 600 - 1050 | 650 - 1100 |
Applications
- Single/Multiple Homes
- Holiday and Residential Caravan sites
- Golf Course toilets
- Churches
- Mobile homes
- Farms
- Temporary work offices e.g. portable cabins
- Offices/Light Industrial Units
- Temporary Dwellings & Welfare Facilities
Legislation
- CE marked
- Third party tested to EN12566 Part 1
Downloads
Declaration of Performance (DoP)
Contact the Kingspan Klargester Team
Whether you're planning a new project, looking for product guidance or need support with an existing system, our team is here to help.

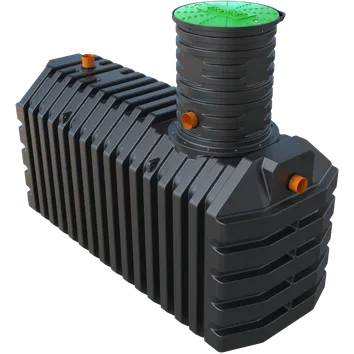

Clearwater Septic Tank Range
