BlueTruckMaster® - 200L
- Product Code
- BTM200
- Capacity
- 200 litres
- Features
- Lid with lockable latch
- Features
- Automatic nozzle

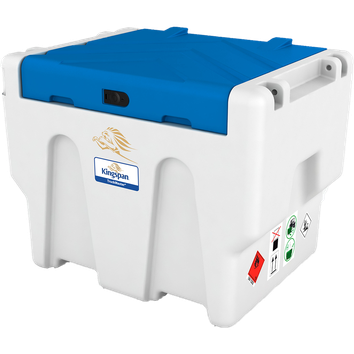

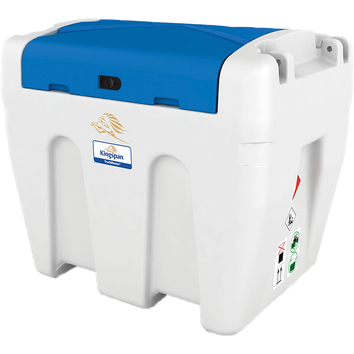

BlueTruckMaster®Portable DEF Storage Tank
Product Information
Our range of portable DEF tanks has been specifically designed for safe transportation of DEF. Take them anywhere - the BlueTruckMaster range are built from high-quality polyethylene and are resistant to structural damage, changing weather conditions and UV radiation. Available from 200 to 900 litres, with a number of specification and dispensing options, the range suits a variety of applications including agricultural, construction and forestry.
Product Highlights
- Go anywhere, transport DEF efficiently and safely to target location
- Automatic filling nozzle to protect against spills during refuelling
- 5-year tank guarantee* for total peace of mind
Technical Information
Dimensions
| Capacity (litres) | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
| 200 | 600 | 800 | 620 | 33 |
| 300 | 600 | 800 | 890 | 45 |
| 430 | 1180 | 860 | 910 | 64 |
| 900 | 1410 | 1050 | 1210 | 97 |
Dimensions may vary within a small parameter due to manufacturing process variations or environmental conditions. The weight is approximate and depends on the specification.
Specification
| Description / Model | BTM53 | BTM79 | BTM114 | BTM238 |
| Ball valve on suction line | ● | ● | ||
| Suction line with mesh filter | ● | ● | ● | ● |
| 12 V DC pump (max. flow rate 13.2 gpm)**** | ● | ● | ● | ● |
| 19' 8" power cable with battery clamps | ● | ● | ● | ● |
| 13' 2" flexible delivery hose | ● | ● | ● | ● |
| Automatic nozzle | ● | ● | ● | ● |
| Lid with lockable latch (padlock not provided) | ● | ● | ||
| Lid with integrated lock | ● | ● | ||
| Lid with support gas struts | ● | ● | ||
| Vacuum and pressure relief valve (VENT) | ● | ● | ● | ● |
| 4 lifting shackles | ● | ● | ||
| Battery powered LED lamp | ● | ● | ||
| 24 V DC pump (max. flow rate 9 gpm) | ○ | ○ | ○ | ○ |
| Digital flowmeter fixed to the nozzle | ○ | ○ | ○ | ○ |
● = Standard accessories ○ = Optional accessories
* 5 year warranty applies to tanks only.
** Lid with lockable latch (padlock not provided).
*** Lifting eyes are included only in selected models.
**** Maximum across pump flow rate as defined by pump manufacturer, actual flowrate will be less.
Product Variants
BlueTruckMaster® - 300L
- Product Code
- BTM300
- Capacity
- 300 litres
- Features
- Lid with lockable latch
- Features
- Automatic nozzle
BlueTruckMaster® - 430L
- Product Code
- BTM430
- Capacity
- 430 litres
- Features
- 4 lifting shackles
- Features
- Battery powered LED lamp
BlueTruckMaster® - 900L
- Product Code
- BTM900
- Capacity
- 900 litres
- Features
- 4 lifting shackles
- Features
- Battery powered LED lamp
